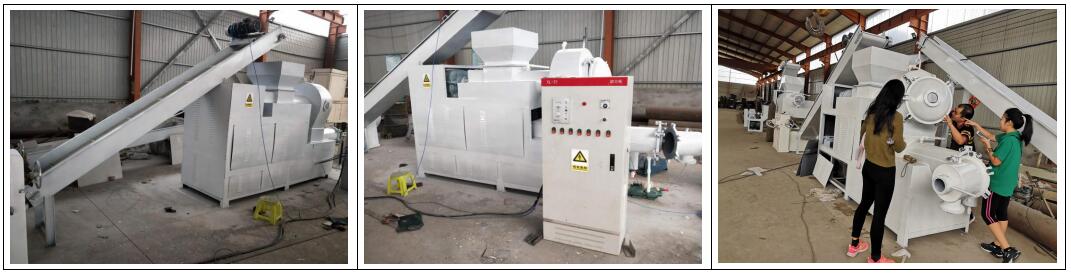

Vacuum Double Screws Toilet Laundry Soap Plodder To Give Soap Bars

For more details, pls directly contact with Jenny,
Tel/Whatsapp/Wechat: 0086 156 1765 1038,

Product description of Vacuum Double Screws Toilet Laundry Soap Plodder:
★Vacuum plodder is used to grind, refine and press soap noodles/strips to into soap bars.
★The above and below screws and two orifice plates press and refine the soap material and make the soap bar tight and the surface bright.
★The vacuum pump vacuumizes the soap  materials, and the soap is hard to crack.
★The below screw's speed is adjustable to regulate the capacity.
★The vacuum chamber has a vision glass to watch the inner.
★The vacuum  meters to test the vacuum degree.
★The heater inside the outlet adopt automatic temperture control system.
★The jackets of the above and below barrels are connected to a circulating water source.
★The motor and the reducer are separated , for long-life span and maintenance.
★The parts connecting the the soap material are made of food grade stainless steel 304.
Features of Vacuum Double Screws Toilet Laundry Soap Plodder:
★Adopts drive reduction speed separation, much more convenience maintenance, long service life.
★The main machine adopts Steel weldments, compact structure,good-looking appearance, low noise and stable production.
Machine parameter of Vacuum Double Screws Toilet Laundry Soap Plodder:





					Type


					Capacity(kg/h)


					Motor power(Kw)


					Motor power(kw)


					Speed of screw


					Outer diameter (mm)


					Outside size

(mm)

					Net weight





					C180


					100-300


					4


					5.5


					Upper screw 15rpm,

Lower screw8-16rpm

					200


					4000*1000*2450

mm

					1870kg


Different Capacity of soap plodder:
100-300kg/h, 300-800kg/h, 1000-2000kg/h and so on .
