toilet soap and laundry soap making machine
Layout of Soap Production Finishing Line:

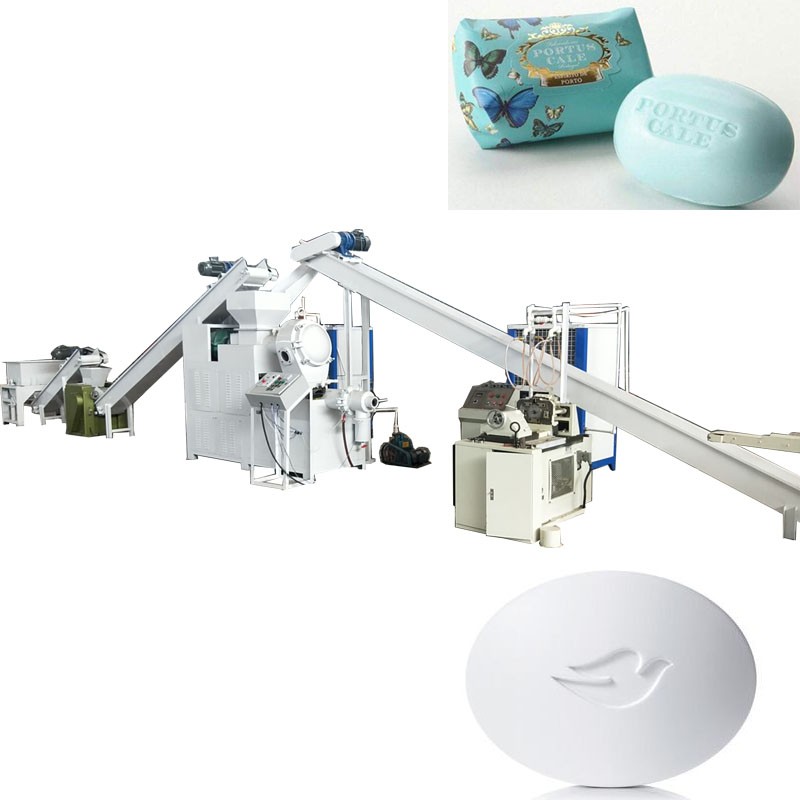

Production flow photos of Soap Production Finishing Line:
Introduction of Soap Production Finishing Line
1. This soap production line take soap noodles(soap bar) as raw materials.
2. The production starts with mixing soap noodles/stripes,perfume pigment,essence and,etc.
2. Then the mixed soap noodles enters in the three roller mill by conveyor belt, where soap thin sheets
3. The soap thin sheet then converted into desired long strip soap by the vacuum twin screws plodder machine.
4. Then the long strip soap are cut into the soap bars required size and shape by cutting machine or toilet soap stamper machine
5. Finally, the soap bars gets packed by packing machine if needed.
6. Soap bars can be made 15g,20g,30g,60g,120g,200g,260g,500g,800g,1000g,and so on
Different capacity of Soap Production Finishing Line
Toilet Soap Production Line: 100/200/300/500/800/1000kg/h
Laundry soap production line:100/200/300/500/800/1000/1500/2000kg/h
Features of Soap Production Finishing Line :
1. The finishing lines of Series for Laundry or toilet and translucent soap bring together all components that are most reliable, most durable, supplied by the most famous vendors in the world.
2. The mechanical design is tend to be simplified, more robust, low energy consumption, low off-stream rate, easy to be maintained ,more people oriented and with good view both outside and inside of the machines.
Machine parameter of Soap Production Finishing Line
|Soap Mixer||YM-60/70/80||70/90/120kg/batch||Depends on the model/capacity||Mixing the material and neat soap, also crushing the bad soap bars.|
|3 roller miller||YM-S150/S260/S405||300/500-1000/2000kg/h||Depends on the model/capacity||rubbing soap material|
|Semi-finished product conveyor||
||Depends on the model/capacity||convey soap pieces|
|Double-screws vacuum soap plodde||YM-C180/219/245/325||100-300/300-500/500-1000/1000-2000kg/h||Depends on the model/capacity||vacuum ploddering|
|Vacuum pump||YM-VP001/VP002||8/15L/S||Depends on the model/capacity||vacuum bubble pumping|
|Laundry soap bar cutting machine||YM-SC004||100-3000KG/H, Depends on the soap plodder||Depends on the model/capacity||cut the soap into different sizes and weight, and print words and logo on the soap bar|
|Toilet soap stamper machine||YM-SPM001/SPM002||100-500/500-800kg/h||Depends on the model/capacity||print different shapes toilet soap with different logo|
||Depends on the model/capacity||Convey products|
||Depends on the model/capacity||auxiliary equipment of the soap printer|
|Soap packaging machine||YM-CT250/CT320||
||Depends on the model/capacity||packing toilet and laudnry soap bars|
Clients's Soap Production Finishing Line For Sale(For you reference):
Customized made toilet and laundrysoap bars for reference:
Packing and shipping of Soap Production Finishing Line
2, During the life-span of our machines, we should give consistent technique support and service, and we are pleasure to be on service of you.(24hours on line)
